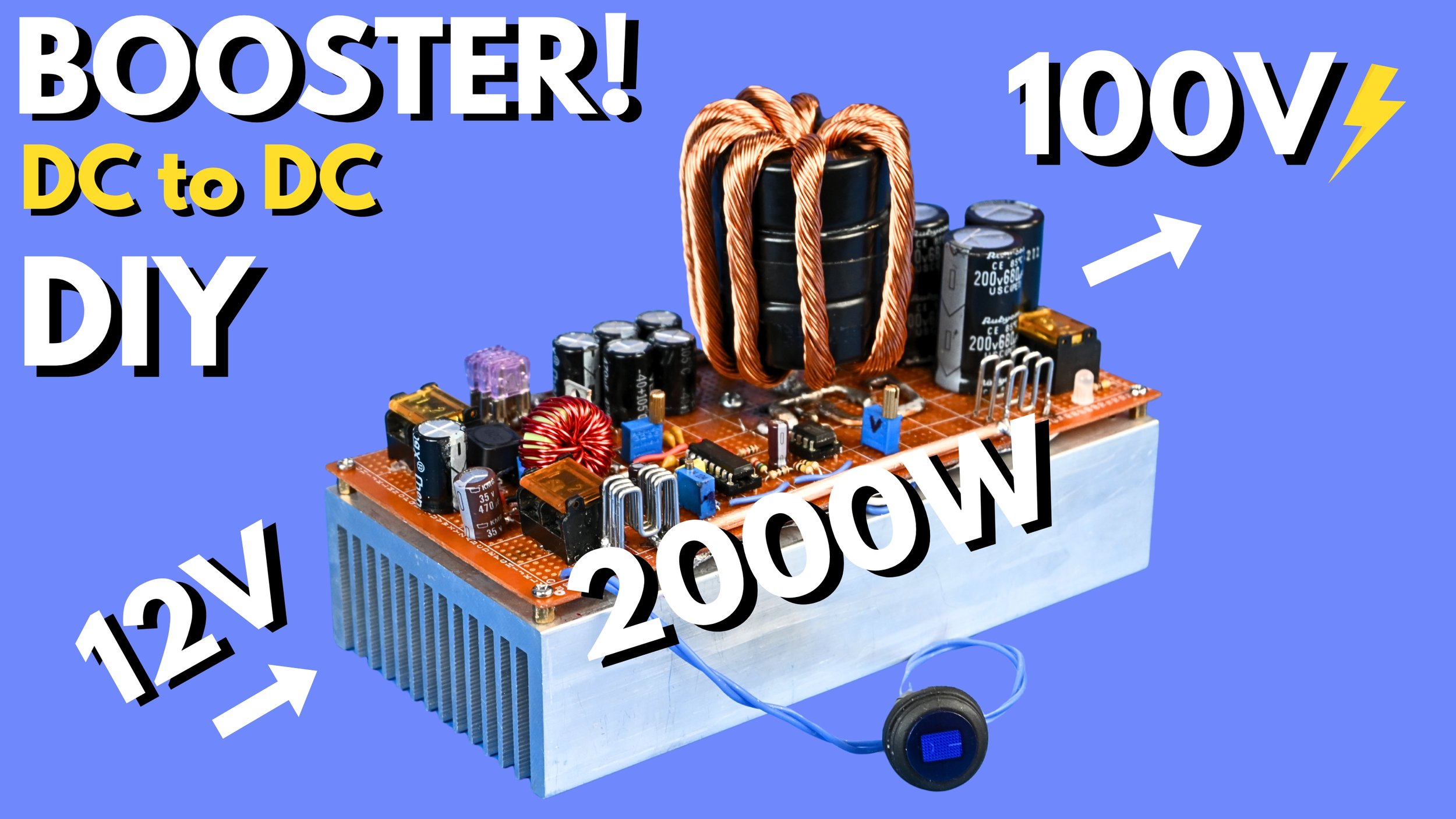

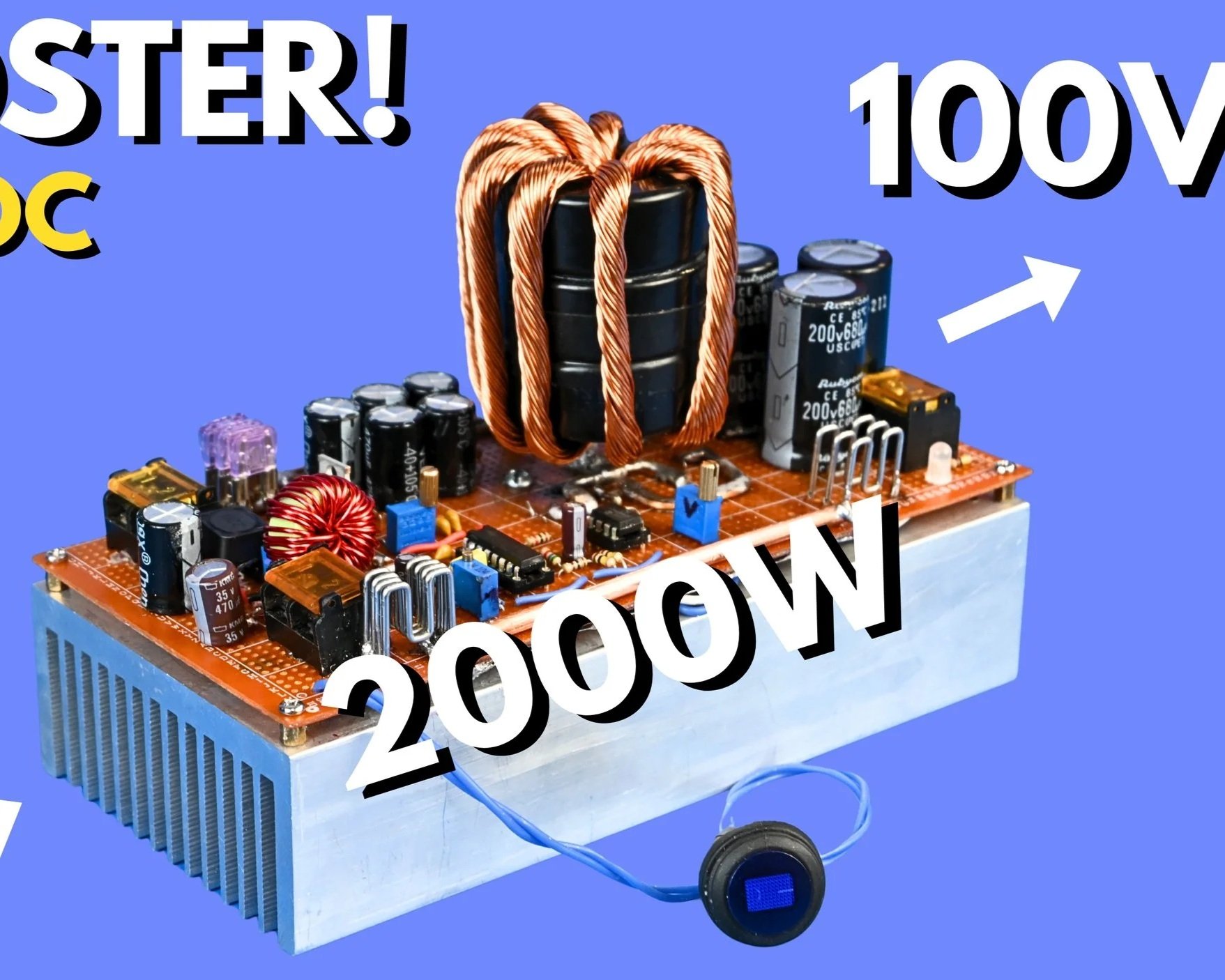

This is a 3-page detailed design schematic of our DIY 2000W DC to DC Boost converter. This schematic provides the fundamental design information required to build a working boost converter - using the TL494 PWM circuit.

This is meant to be a beginner’s guide as there is always room for further design improvements.

Ensure to watch our YouTube video that fully explains this design schematic in great detail https://youtu.be/1iTI4boh6hI?si=tdYsAS2EE3LxxjpY

IMPORTANT NOTE: This is NOT a physical product.

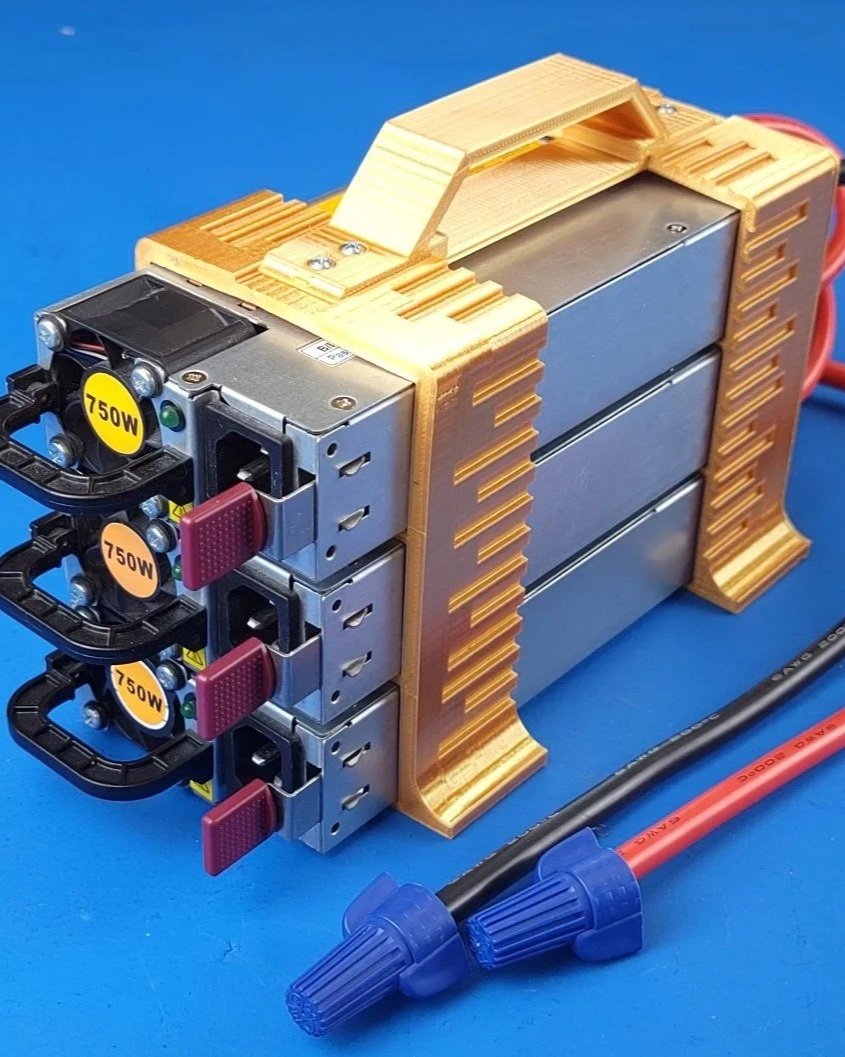

3D Printer STL file for DIY power rack for repurposing old server power supplies. The zipped file contains multiple .stl files that can be 3D printed separately and assembled after print.

Ensure to watch our how to YouTube video that fully explains this hack in great detail https://youtu.be/bljHMx3Mj78?si=sYK_IbODiObtxrVj

IMPORTANT NOTE: This is NOT a physical product.

3D Printer STL file for paralleled 1500W Boost Converter mount or stand. This converter stand design makes it easy to mount 3 boost converters side-by-side in a paralleled configuration. This converter mount helps provide better airflow and DIY convenience.

Ensure to watch our how to YouTube video that fully explains this hack in great detail https://youtu.be/pcwBBZ_T8bA?si=XRoNXpvvrR85kG40

IMPORTANT NOTE: This is NOT a physical product.

3D Printer STL file for a 1500W Boost Converter mount or stand. This converter stand design it easy to mount the converter for maximum airflow and DIY convenience

NOTE: This is NOT a physical product.
